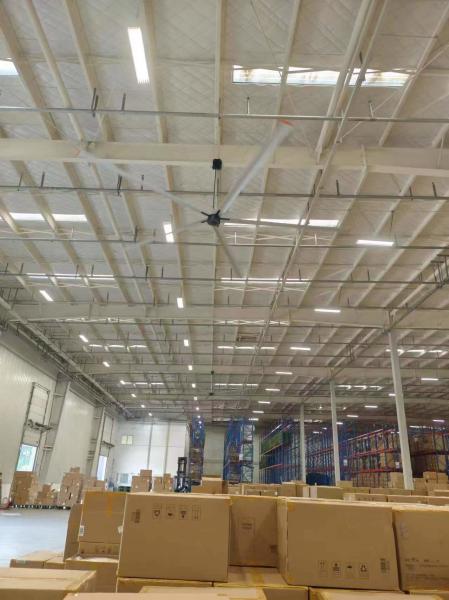

2mm Thickness Blade 7.3m Diameter HVLS Ceiling Fan For Distribution Centers
Product Description:
Our industrial and commercial HVLS fans are engineered to drive your business forward by enhancing productivity, improving safety, and creating more comfortable work environments. Designed to optimize airflow and reduce operational inefficiencies, our solutions empower teams to perform at their best while delivering measurable
results.
Features:
- Direct drive motor system
- Stronger: 260N torque, air volume increases more than 30%
- Free maintenance, more cost-effective.
4. Lower noise: less than 40db noise, more comfortable.
Technical Parameters:
| DIAMETER | 8ft(2.5m) | 12ft(3.8m) | 16ft(5.0m) | 20ft(6.2m) | 24ft(7.3m) |
| MODEL | SFFCA25 | SFFCA38 | SFFCA50 | SFFCA62 | SFFCA73 |
| AIR VOLUME | 6500m³/min | 8600m³/min | 13050m³/min | 14100m³/min | 15850m³/min |
| MAXIMUM SPEED | 140RPM | 100RPM | 70RPM | 60RPM | 55RPM |
| WEIGHT | 35Kg | 51Kg | 75Kg | 90Kg | 127Kg |
| MOTOR POWER | 0.3kw | 0.4kw | 1.1kw | 1.1kw | 1.5kw |
| FULL LOAD CURRENT | 1.8AMPS/220V | 2.0Amps/380v 2.3Amps/220v | 2.4Amps/380v 3.2Amps/220v | 3.0Amps/380v 3.5Amps/220v | 3.5Amps/380v 5.5Amps/220v |
Applications:
Distribution Centers - Keep the air flowing to prevent the goods from getting damp or overheating.
Warehouses - Used to improve air circulation, regulate temperature and humidity, improve employee comfort.
Manufacturing Plants - Cooling in high temperature environments reduces the risk of equipment overheating.
Gymnasiums and Sports Facilities - Provide ventilation, reduce indoor temperatures and enhance the sports experience.
Agricultural Buildings - Regulate temperature and humidity in a greenhouse or barn to promote the health of animals and plants.
Airplane Hangars - Maintain air circulation to prevent moisture and corrosion.
Support and Services:
BIGFANS have own installation service team exceeded 100 people, covering the four major regions of South China, East China, Southwest China and Northeast China, providing 24-hour service.
The company's after-sales department adopts an 8-hour response and a 24-hour problem-solving mechanism to serve you wholeheartedly.
Packing and Shipping:
One set of PMSM ceiling fan is packed by two plywood case,one is for blades, the other is for motor,controller and installation spare parts.
FAQ:
Q: Are you factory or trading company?
A: We are factory which established more than 12 years.
Q: How is your motor’s quality compared with others?
A: High efficiency (85%~89%) is our strength.
Low repair rate (less than 0.08%).
All the motors have passed ISO9000, CE.
Q: What is your delivery time? A: Usually we have stock, delivery time within 7 working days. If there is customized requirement, time is negotiable. Q: What other services can you provide? A: Accepted delivery terms: FOB,CFR,CIF,EXW,DDP,DDU. Accepted payment type: T/T, L/C;
